Our Products

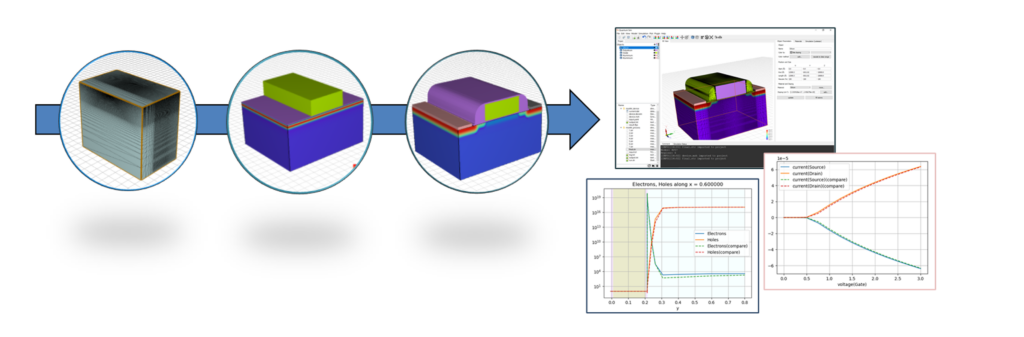

Technology Computer-Aided Design (TCAD)
Process simulation
Simulate the fabrication of semiconductor device
- Etching, Deposit
- Ion implantation
- Oxidation, Diffusion
- etc
Device simulation
Simulate the performance of device
- Classical and Quantum Physical models
- DC, AC and transient
- Extract device parameters, construct compact model
- etc

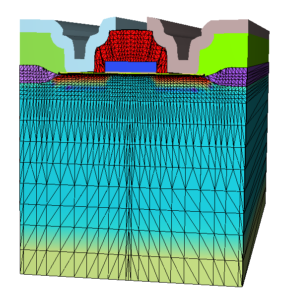

Process Sim
Process simulator for semiconductor devices
- Robust modern PDE solver
- Combination of level set method and explicit surface description
- Delaunay advancing front mesh generation and processing
- Geometric, isotropic and anisotropic etching models
- RIE, Plasma etching, CMP
- CVD, ALD, Monte Carlo deposition
- Gauss and Pearson-IV implantation models
- Specialized diffusion model for various impurities
- Constant, ramped and custom annealing
- Compressible and incompressible oxidation models
Device Sim
Classical device simulator
- DC , AC analysis, transient simulation
- 2D and 3D mesh
- Finite volume method, Scharfetter-Gummel discretization
- Drift-diffusion transport, Continuity equations
- Ohmic and Schottky contacts
- Mobility models
- SRH, radiative, Auger, Langevin recombination, etc
- Defect traps density of states models
- Band gap narrowing models
- Band-to-band tunneling models
- Exciton diffusion, singlet, triplet excitons
- User customizable degradation model
- Material database, Silicon based, III-V binary, SiC, TFT materials
- Parameter extraction, result visualization

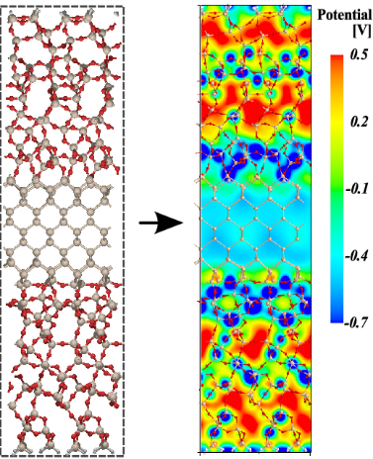

Quantum Sim
Atomistic quantum physics simulator
- Accurate quantum physical models
- Material and device simulation
- Density functional tight binding (DFTB)
- Non-equilibrium Green’s function (NEGF)
- Steady state & transient simulation
- Fast algorithms: can handle >10K atoms
- Massive CPU & GPU parallelization
- Electron-Phonon/Photon couplings
- Material database: Si, GaAs, SiC, CNT, etc
- Atomistic 3D GUI

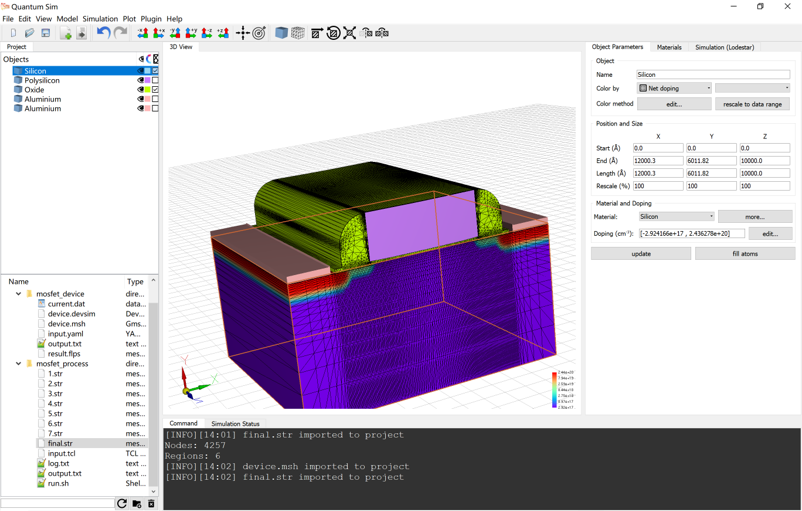

Graphical user interface
All-in-one integrated platform for TCAD
- Mesh visualization
- Input file configuration
- Material database
- Organized model parameters management
- Simulation jobs management
- Data analysis and visualization
